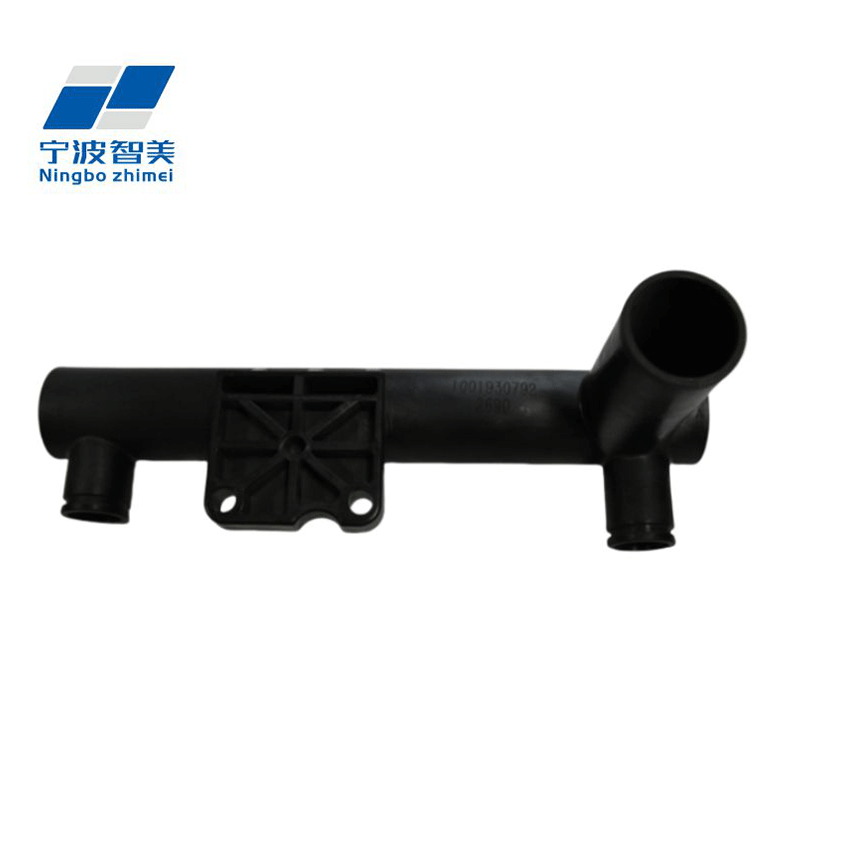

Plastic oil and gas connection pipelines are the "blood vessels" of the oil and gas transmission system. With their corrosion resistance and lightweight characteristics, they provide safe and reliable solutions for the oil and gas transmission of various equipment.
This pipeline is made of high-strength nylon 12 material, and after special processing, it has excellent oil resistance and chemical corrosion resistance.Whether it is gasoline, diesel, hydraulic oil, or various lubricating oils, it can be easily dealt with and will not cause swelling, cracking and other problems due to long-term contact with oil products.The actual data show that its anti-burst pressure can reach 30MPa, far exceeding the industry standard 20MPa. It can also maintain structural stability in a high-pressure oil and gas transmission environment, and eliminate leakage risks from the root.At the same time, the material itself has good flexibility and can still maintain elasticity in a low temperature environment of -40℃. The bending radius can reach 5 times the diameter of the pipe, which is convenient for arrangement and installation in the complex space inside the equipment, reducing the number of pipeline joints and reducing leakage risks.
In terms of performance optimization, the inner wall of the pipeline adopts mirror polishing process, with a roughness of only 0.8μm, which is far lower than the 2.5μm of traditional metal pipelines.This design not only reduces oil and gas flow resistance and improves transmission efficiency by 15%, but also reduces the residue and adhesion of oil products in the pipe and reduces the probability of pipeline blockage. It is especially suitable for precision hydraulic systems and fuel injection devices.The outer layer is equipped with anti-ultraviolet rays and anti-aging additives, which will not fade or harden when used outdoors for a long time. The service life can reach more than 8 years, which is twice that of traditional rubber pipelines.
Detailed design takes into account both practicality and safety.The pipeline joints are integrated injection molded and seamlessly connected to the pipe body, avoiding the problems of loosening and leakage of traditional welding or adhesive joints.The joint is equipped with a double sealing structure, with a nitrile rubber O-ring on the inside and a polytetrafluoroethylene retaining ring on the outside, which ensures reliable sealing performance even in high temperature and high pressure environments.At the same time, a pressure-resistant wear ring is set up every 50cm to enhance the damage resistance of the pipeline during dragging and friction and extend the service life.
Adaptive scenarios cover a wide range of fields.In the automotive industry, it can be used as an engine fuel pipe and transmission hydraulic oil pipe, suitable for a variety of vehicles such as cars, trucks, and engineering vehicles; in industrial equipment, it is suitable for hydraulic pipelines of hydraulic presses and injection molding machines, as well as oil-gas separation pipelines of air compressors; in terms of agricultural machinery, it can meet the needs of diesel conveying and lubrication systems of tractors and harvesters.For different scenarios, there are also a variety of specifications, with pipe diameters ranging from 6mm to 50mm. The wall thickness is divided into three categories according to the pressure level: 1.5mm, 2.5mm and 4mm, and can be flexibly matched according to actual needs.
Economicality and environmental protection are also outstanding.Compared with metal pipelines, the weight of plastic oil and gas connection pipelines is 60%, reducing the overall weight load of the equipment, and reducing the procurement cost by 40%, greatly saving equipment manufacturing costs.No special tools are required during the installation process. Quick plug connectors are used, and the connection operation can be completed by a single person, which improves the installation efficiency by 50%.It can be recycled and reused after being discarded. No toxic and harmful substances will be produced during the recycling process, and it meets environmental protection requirements.
